The three Bodhi problem: a self similar trisection of Bodhisattva, a neighborhood terrier-thing.

(c9)

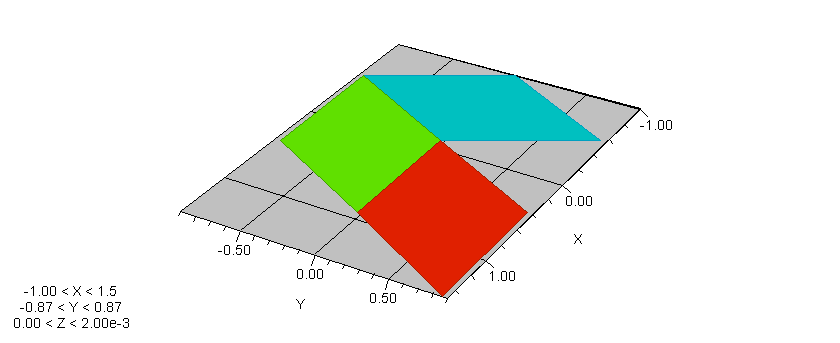

block([debugmode:all],untrace(bodhia),bodhi(1,.001))$

(c15)

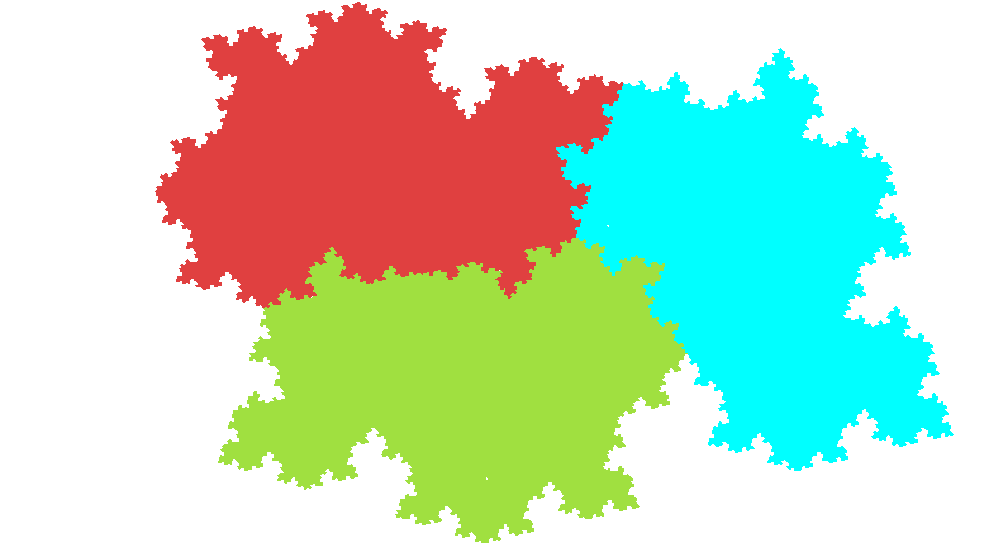

block([plot_style:dragstyle],bodhi(8,.001))$

(c16)
dispfun(bodhi,bodhia)$

(e16) bodhi(n, z) := block([faces : bodhia(n), equalscale : true, color_cycles : 0.5, color_normalize : true, %emode : true], length(faces), for j thru %% do (for i thru length(faces[j]) do (faces[j])[i] : endcons(z * floor(((3 * (j - 1))/(%%))), rectformlist((faces[j])[i]))), plotfaces(faces))

(e17) bodhia(n) := if n = 0 then [[0.0, - 0.86602 * %i - 1.5, - 1.73205 * %i, 1.5 - 0.86602 * %i]] else (expand(0.57735 * (0.5 * %i + 0.86602) * bodhia(n - 1)*^),
append(%% + 0.5 - 0.86602 * %i, - %% - (0.86602 * %i + 0.5), expand((%% - 1) * (0.86602 * %i + 0.5))))
